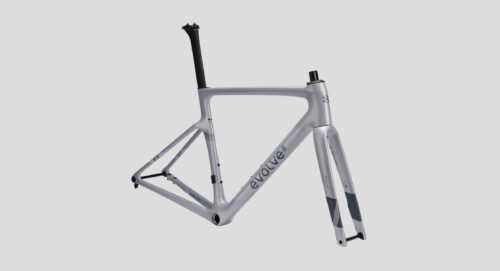

evolve CIMA Speed – Streams
$2,299.00

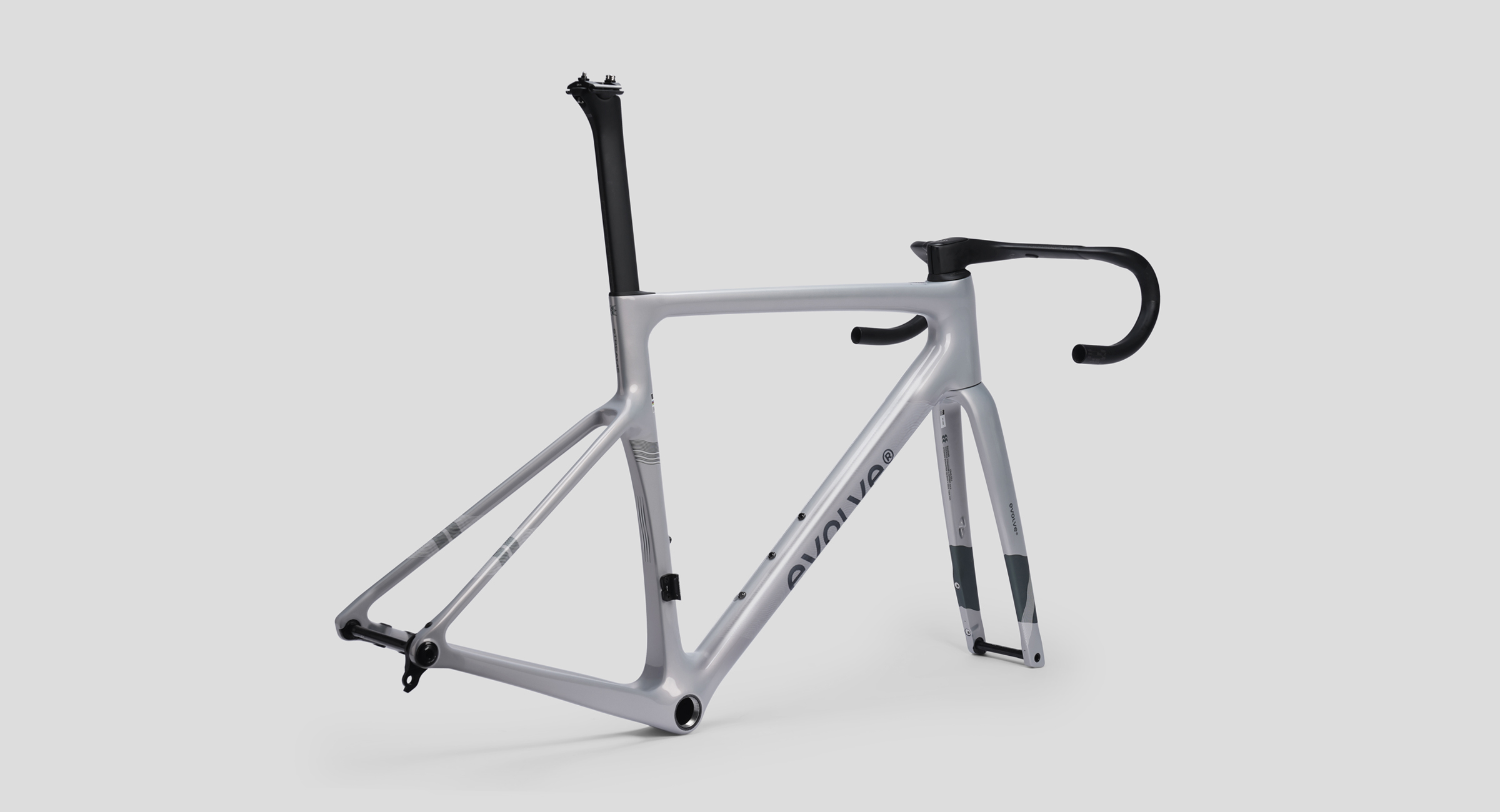

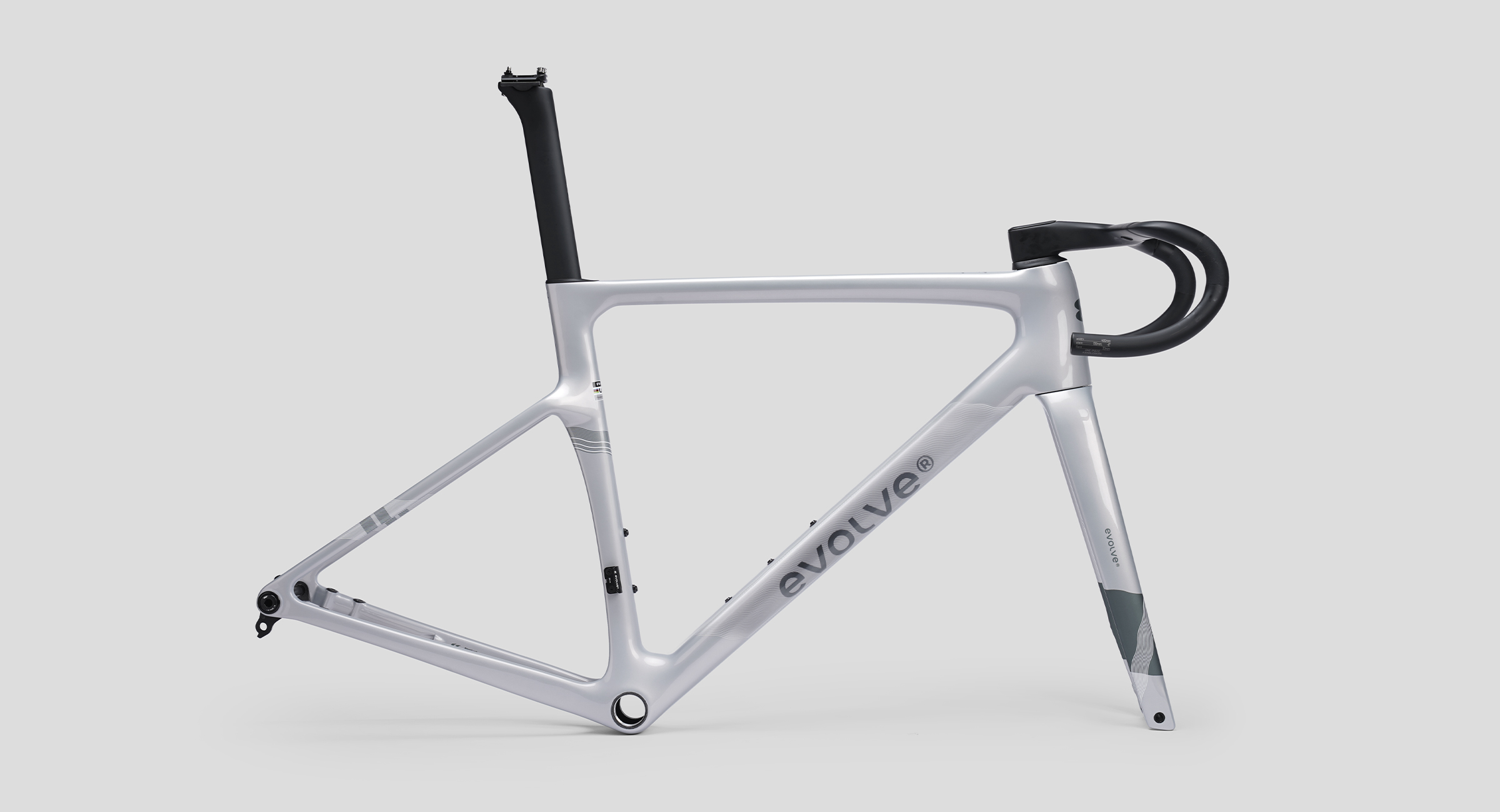

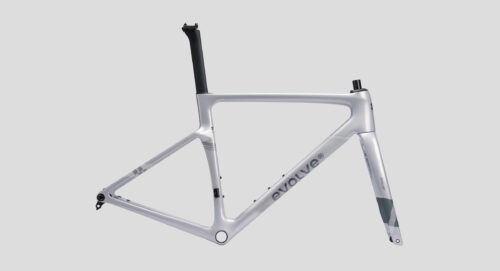

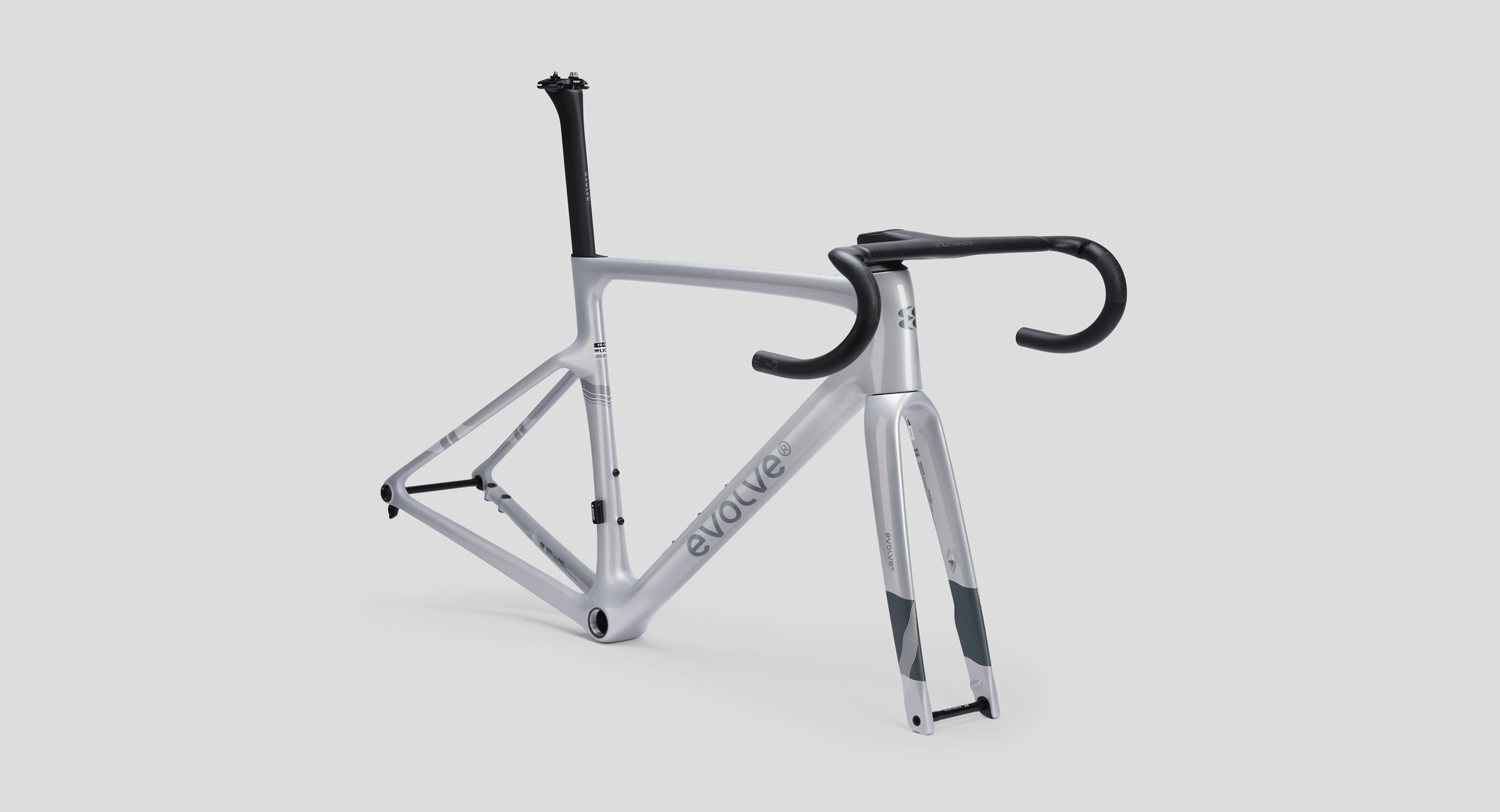

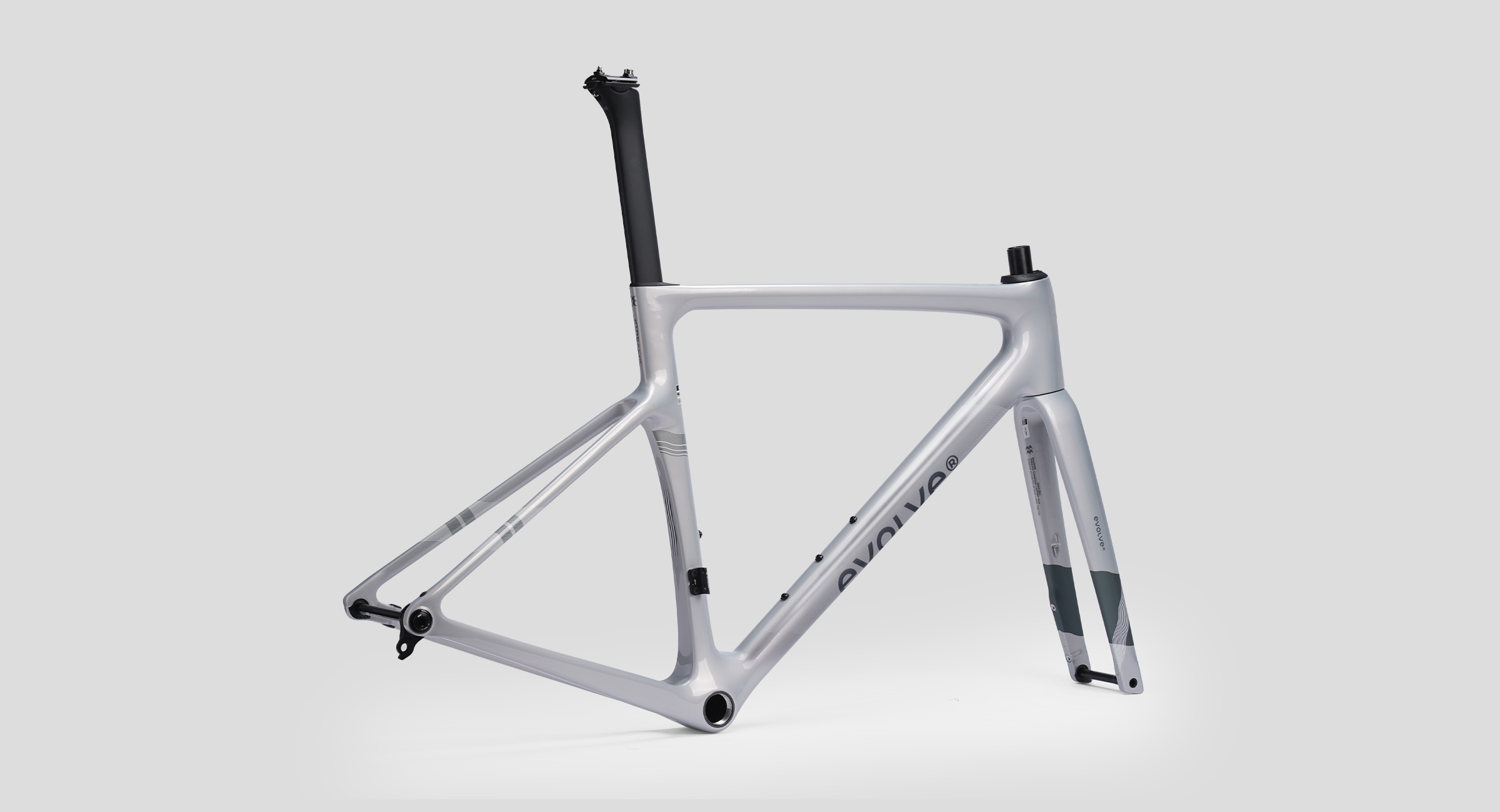

Includes the CIMA frame and fork, seatpost, and all essential components. For the ultimate riding experience, you can also choose to add the Kreuza Apex one-piece handlebar as a combo.
*Note: Please check stock availability with us via livechat or email: service@evolvebicycles.com
Description
LIGHT AS THE WIND, DEFINING IMAGINATION
650g
M-SIZED FRAME WEIGHT (UNPAINTED)

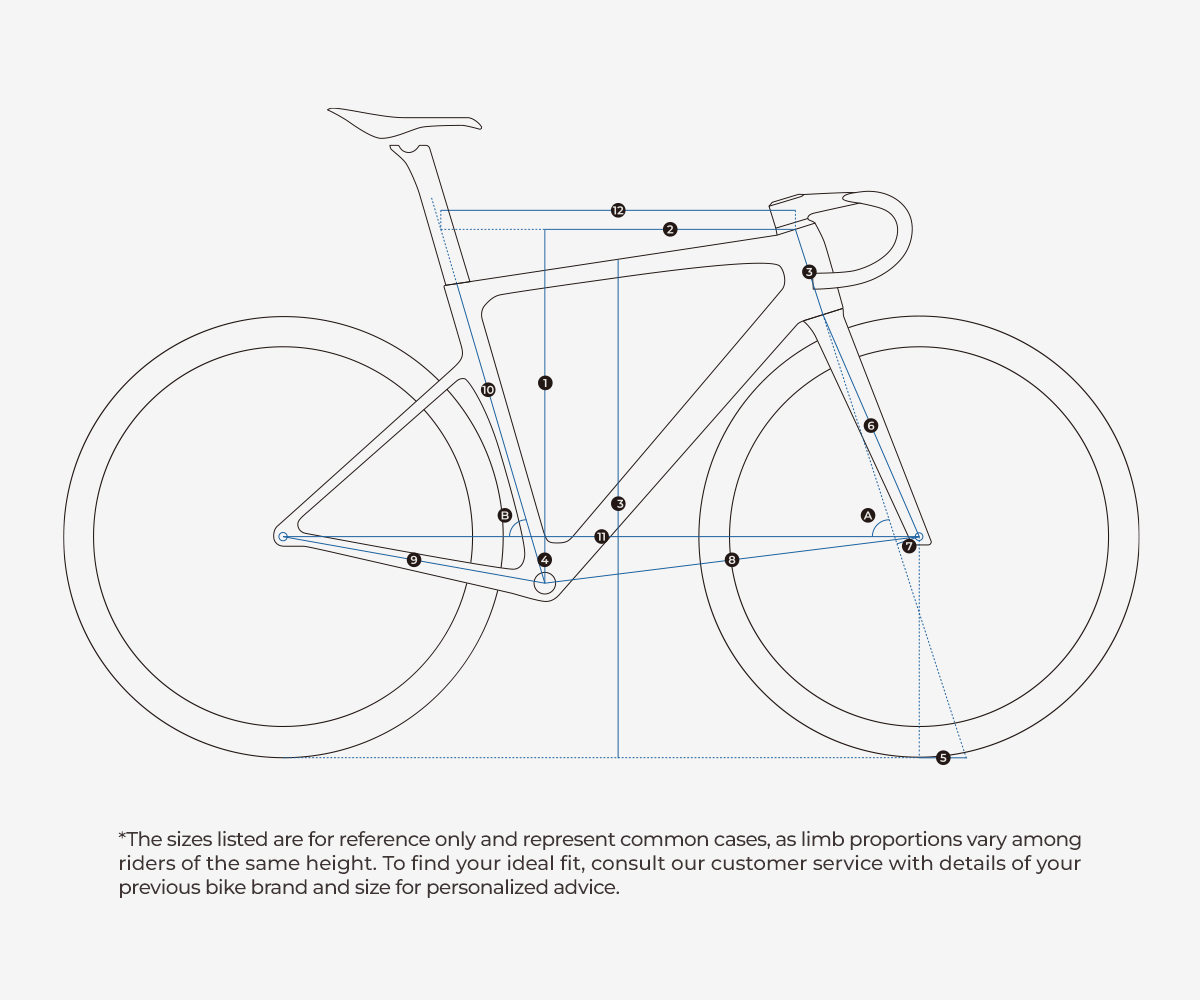

THE BEAUTY OF GEOMETRY THE SOUL OF CYCLING
6 SIZES
SUITABLE FOR RIDERS WITH HEIGHTS FROM 146CM TO 202CM
STR VALUES
1.36/1.40/1.42/1.44/1.46/1.50, SUITABLE FOR XS~XL SIZES
2 DIFFERENT OFFSET FORKS 3 DIFFERENT BB DROPS
MAINTAINING CONSISTENT HANDLING ACROSS SIZES
TOP-TIER MATERIALS EXCEPTIONAL PERFORMANCE
T1100 & T800; M40
HIGH-QUALITY TORAY CARBON FABRIC
12%↑
SPECIAL RESIN FORMULA INCREASES RIGIDITY BY 12% COMPARED TO TRADITIONAL RESINS
PREMIUM COMPONENTS SUPERIOR PERFORMANCE
CERAMICSPEED SLT HEADSET BEARINGS
BSA THREADED BOTTOM BRACKET
SRAM UDH DERAILLEUR HANGER
WORLDWIDE PROFESSIONAL RECOGNITION
IN-HOUSE TESTING
evolve® MAINTAINS STRICT STANDARDS ACROSS 21 TESTING ITEMS FOR FRAME AND FORK, ENSURING ENHANCED RELIABILITY AND RIDING SAFETY
SILVERSTONE SPORTS ENGINEERING HUB WIND TUNNEL TESTING
VALIDATING AND ENSURING GREATER AERODYNAMIC PERFORMANCE
| Frame Material | TORAYCA T1100, T800 & M40 |
| Frame Sizes | XS, S, M, ML, L, XL |
| Frame Weight | 650g (M-sized; unpainted) |
| Fork | Offset 44.0mm (XS \ S \ M); Offset 40.2mm (ML \ L \ XL) |
| Fork Weight | 355g (unpainted) |
| Headset | CeramicSpeed SLT Bearing |
| Headset Bearing Size | 40.5 mm ID x 49.5 mm OD x 6.5 mm |
| Head Tube Diameter | 49.5mm |
| Seatpost | evolve® Seatpost |
| Seatpost Weight | 140g（Parts included） |
| Saddle Rail Clamps | 7x7, 7x9, 7x10 |
| Bottom Bracket | BSA Threaded Bottom Bracket,68mm Width |
| Cable Routing | Internal |
| Rear Derailleur Hanger | Sram UDH M12x1mm |
| Brake Type | Flat Mount Disc Only |
| Max Rotor Size | 160mm F&R |
| Max Chainring | 58-tooth |
| Front Axle | 12 x 100mm |
| Rear Axle | 12 x 142mm |
| Wheel Size | 700C |
| Tire Clearance | 24C-32C |
| Manufacturer Warranty | Limited Lifetime Warranty |
| Certification | UCI Approved; CE Certified |
| Limited Rider Weight | 109kg |
| Compatible Groupsets | All Shimano electronic shifting systems, all SRAM electronic shifting systems, and Campagnolo WRL systems. (Note: EPS systems are not compatible, as the battery diameter is too large to fit inside the frame.) |
