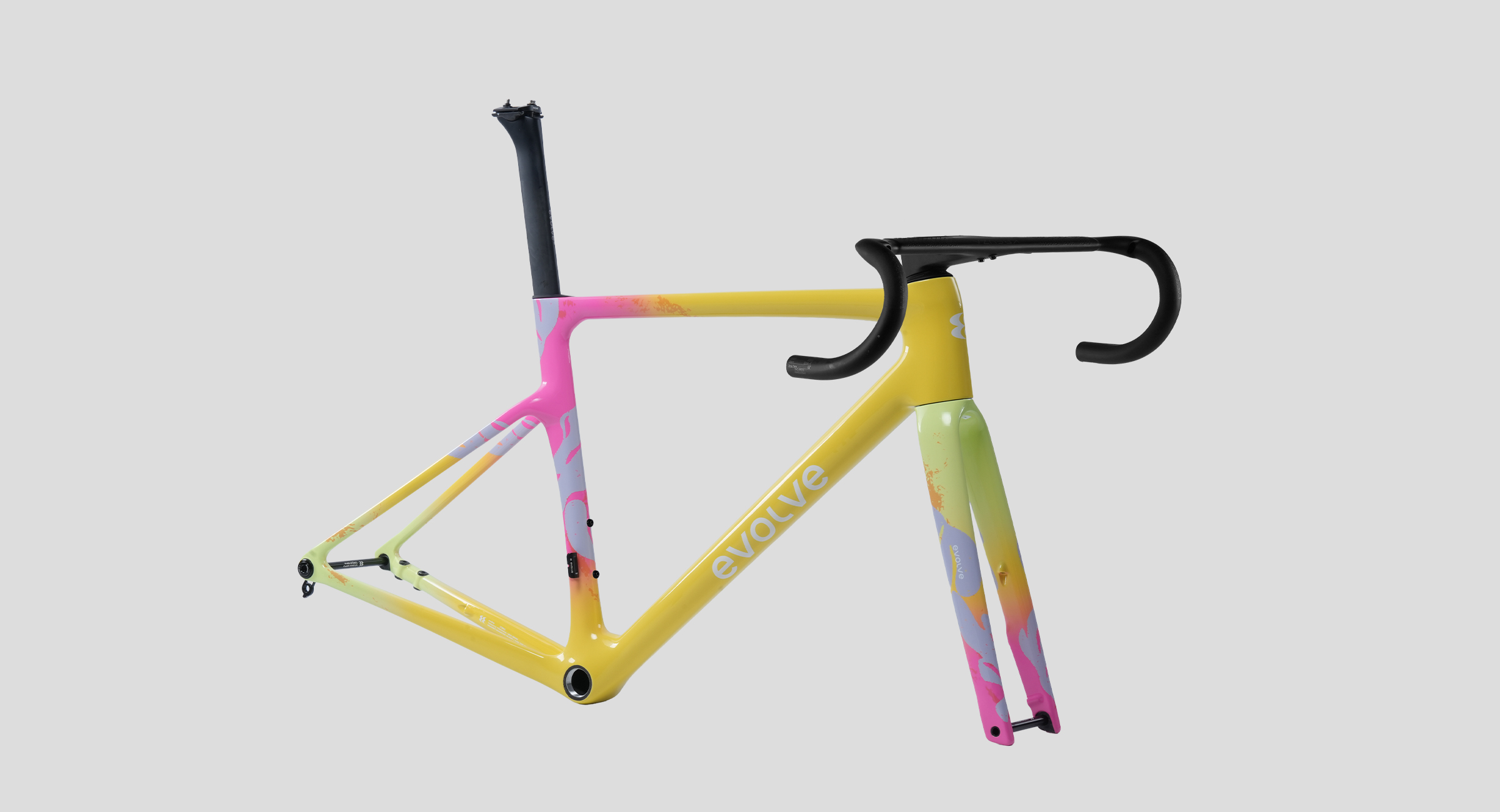

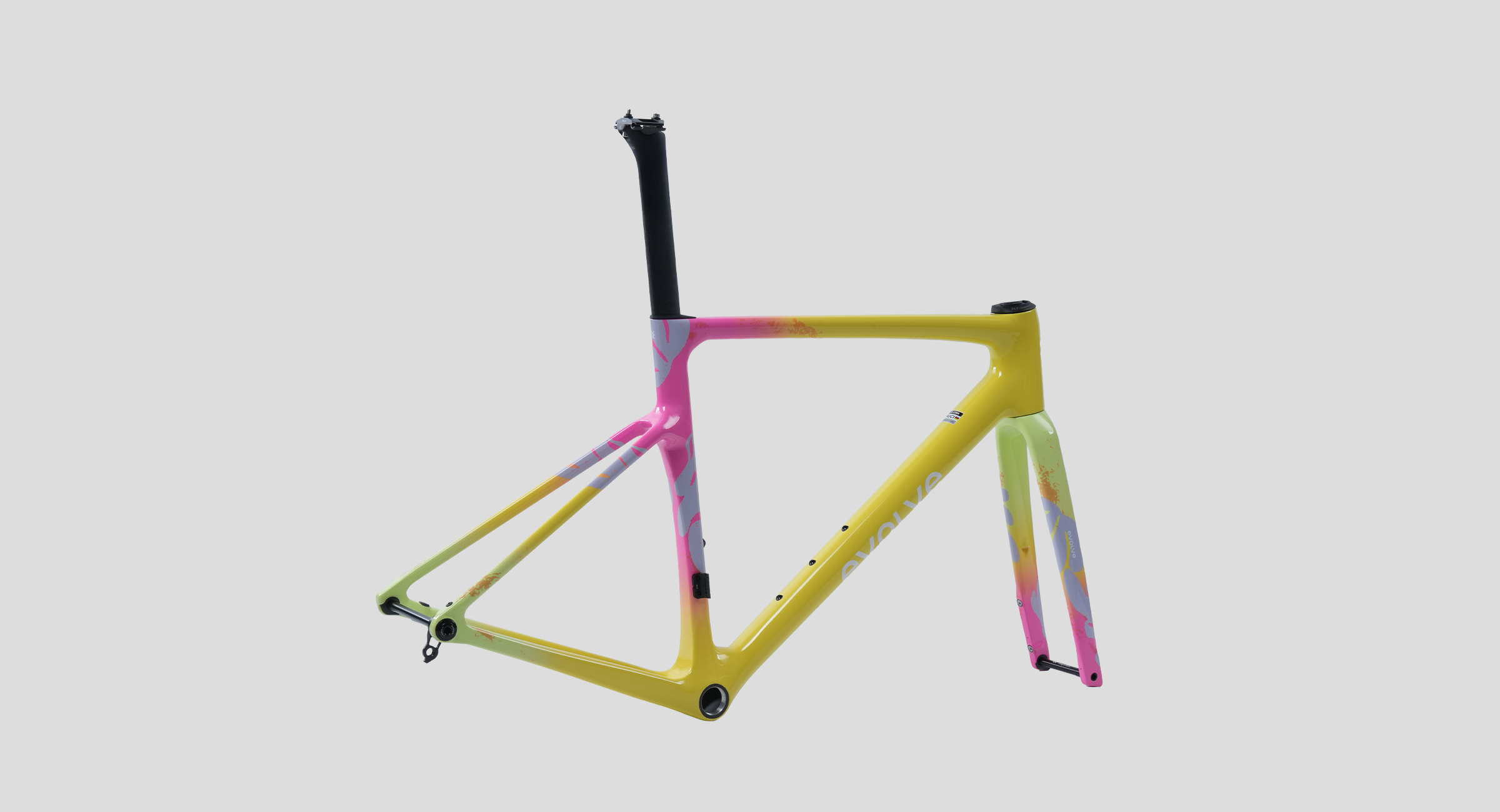

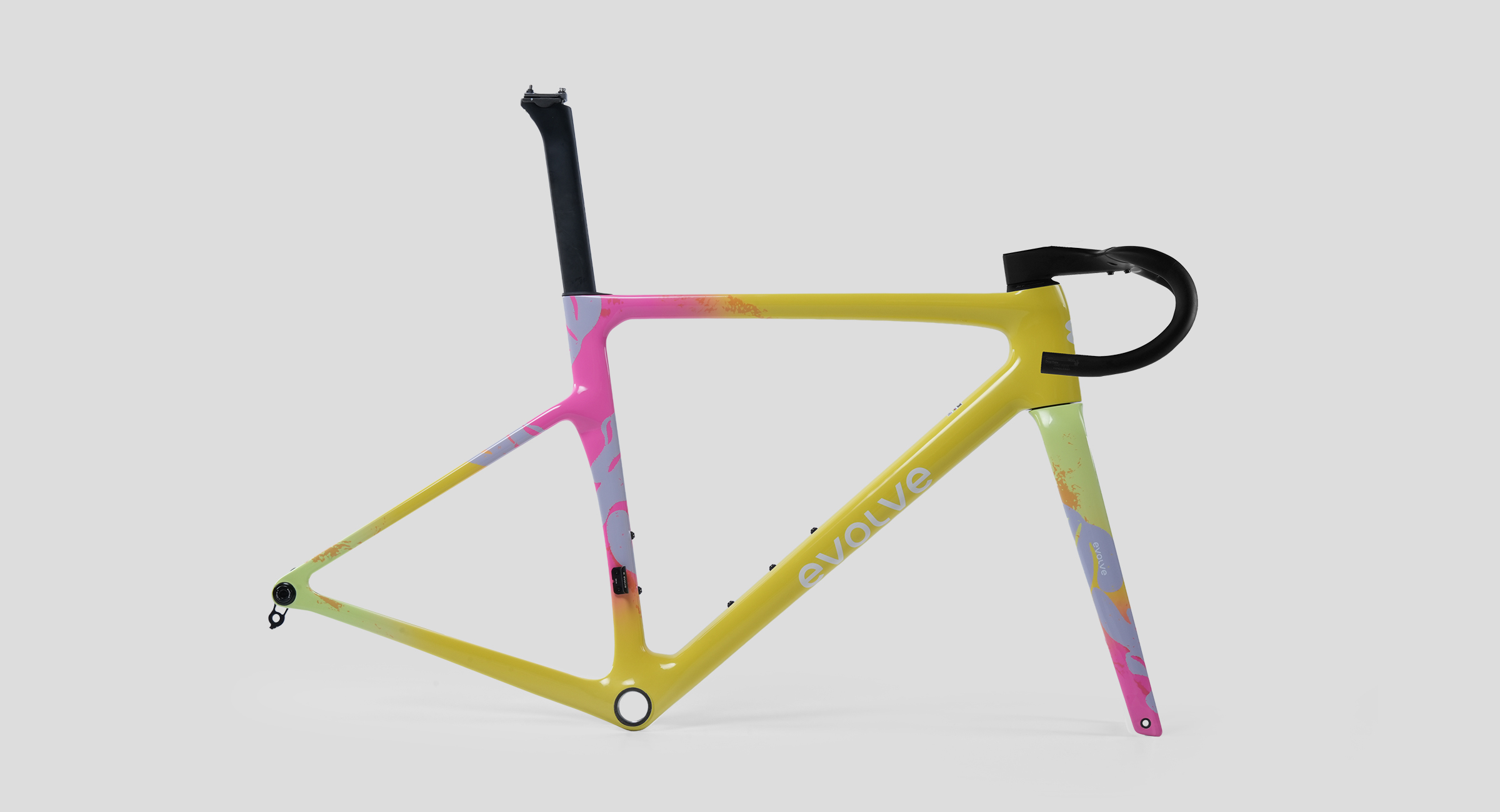

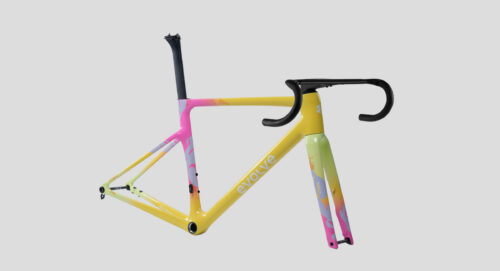

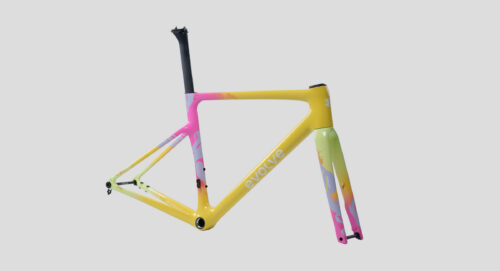

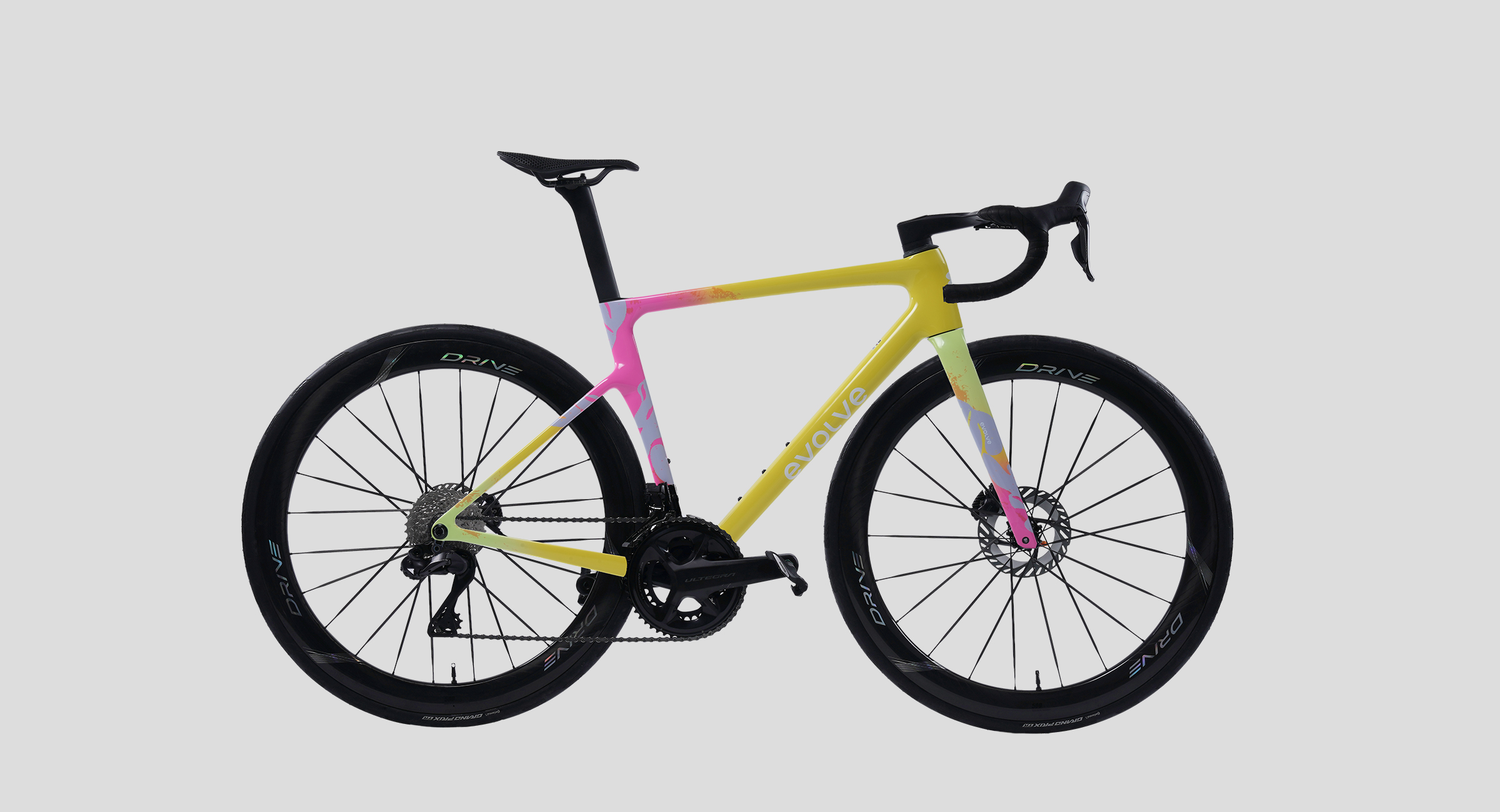

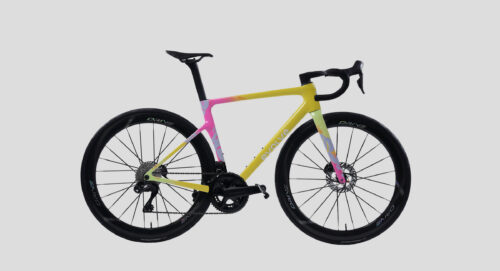

evolve CIMA – Tropical Yellow
$2,299.00

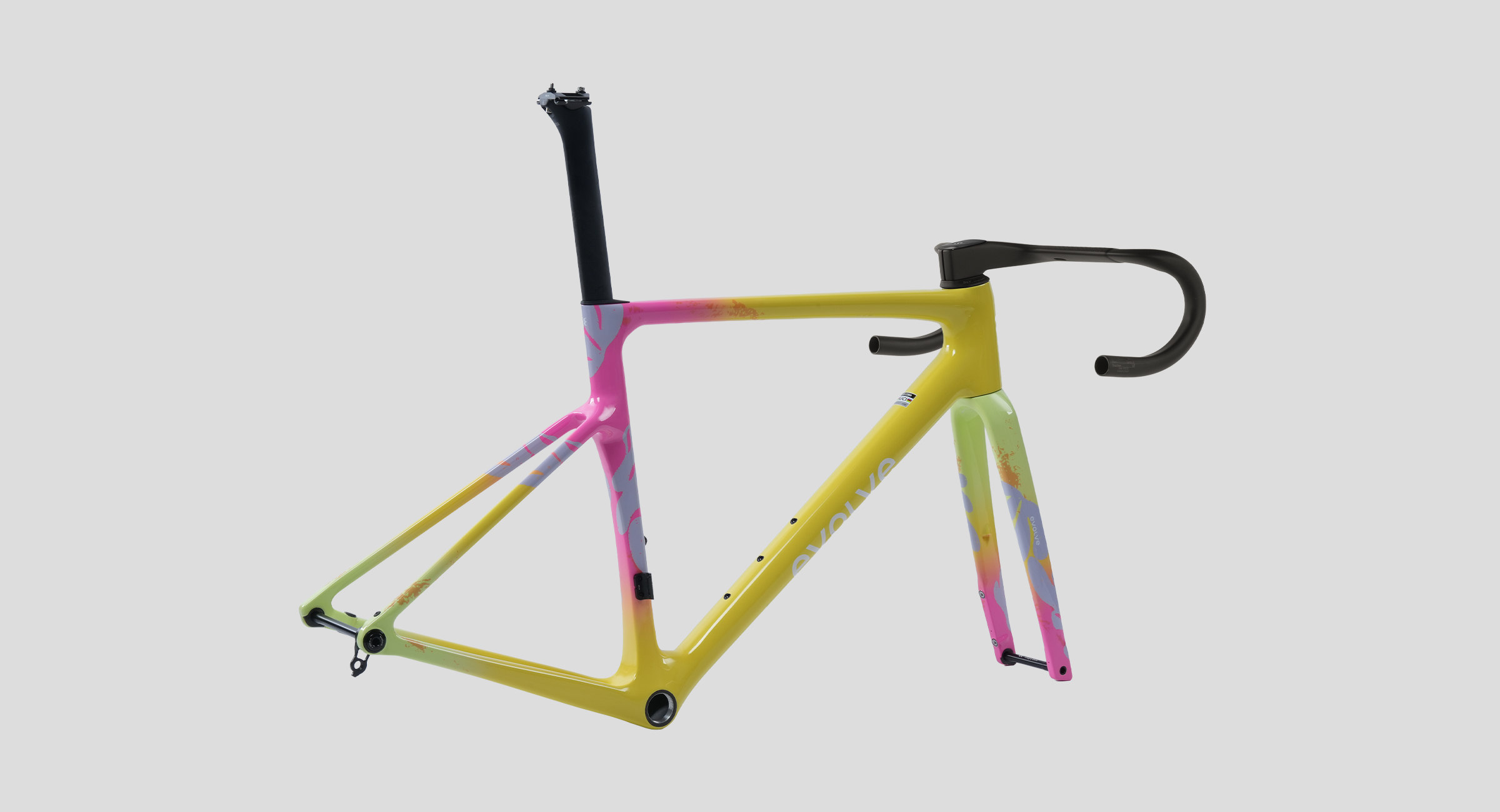

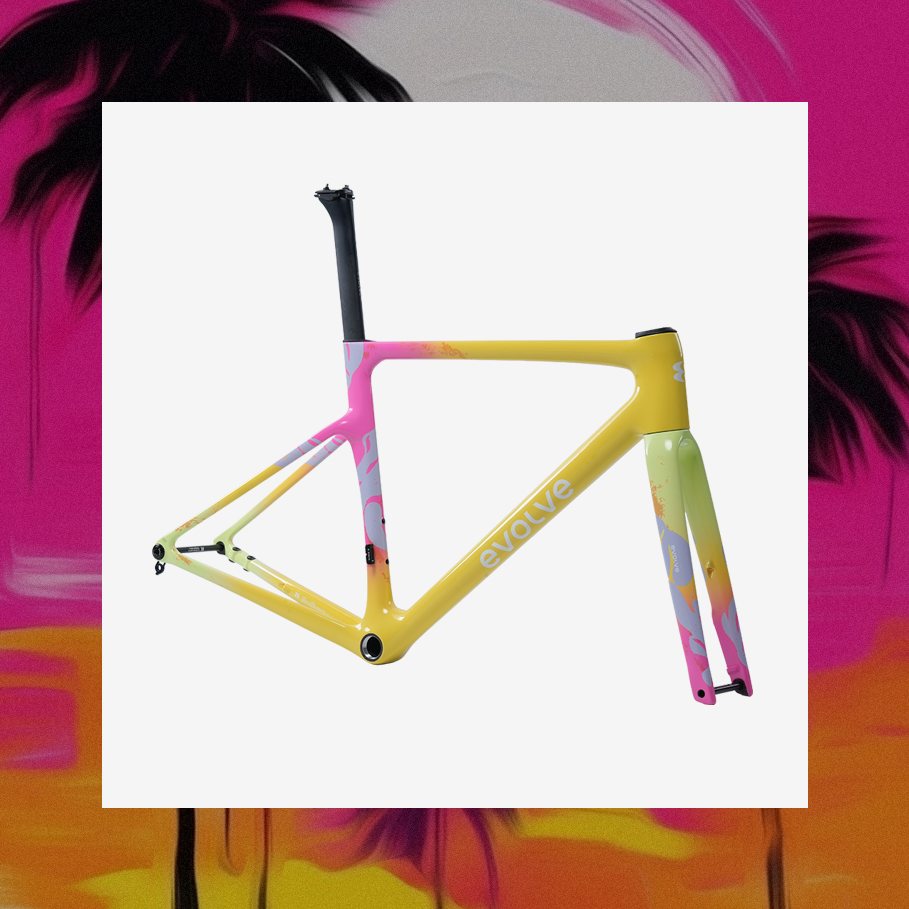

Includes the CIMA frame and fork, seatpost, and all essential components. For the ultimate riding experience, you can also choose to add the Kreuza Apex one-piece handlebar as a combo.
*Note: Please check stock availability with us via livechat or email: service@evolvebicycles.com
Description
LIGHT AS THE WIND, DEFINING IMAGINATION
650g
M-SIZED FRAME
WEIGHT
(UNPAINTED)
THE BEAUTY OF GEOMETRY
THE SOUL OF CYCLING
6 SIZES
SUITABLE FOR RIDERS WITH HEIGHTS FROM
146CM TO 202CM
STR VALUES
1.36/1.40/1.42/1.44/1.46/1.50, SUITABLE FOR
XS~XL SIZES
2 DIFFERENT OFFSET FORKS
3 DIFFERENT BB DROPS
MAINTAINING CONSISTENT HANDLING
ACROSS SIZES
TOP-TIER MATERIALS
EXCEPTIONAL PERFORMANCE
T1100 & T800; M40
HIGH-QUALITY TORAY CARBON FABRIC
12%↑
SPECIAL RESIN FORMULA INCREASES RIGIDITY BY 12%
COMPARED TO TRADITIONAL RESINS
PREMIUM COMPONENTS
SUPERIOR PERFORMANCE
CERAMICSPEED SLT HEADSET BEARINGS
BSA THREADED BOTTOM BRACKET
SRAM UDH DERAILLEUR HANGER
WORLDWIDE PROFESSIONAL RECOGNITION
IN-HOUSE TESTING
kreuza MAINTAINS STRICT STANDARDS ACROSS 21 TESTING ITEMS FOR FRAME AND FORK, ENSURING ENHANCED RELIABILITY AND RIDING SAFETY
SILVERSTONE SPORTS ENGINEERING HUB WIND TUNNEL TESTING
VALIDATING AND ENSURING GREATER AERODYNAMIC PERFORMANCE
| Frame Material | TORAYCA T1100, T800 & M40 |
| Frame Sizes | XS, S, M, ML, L, XL |

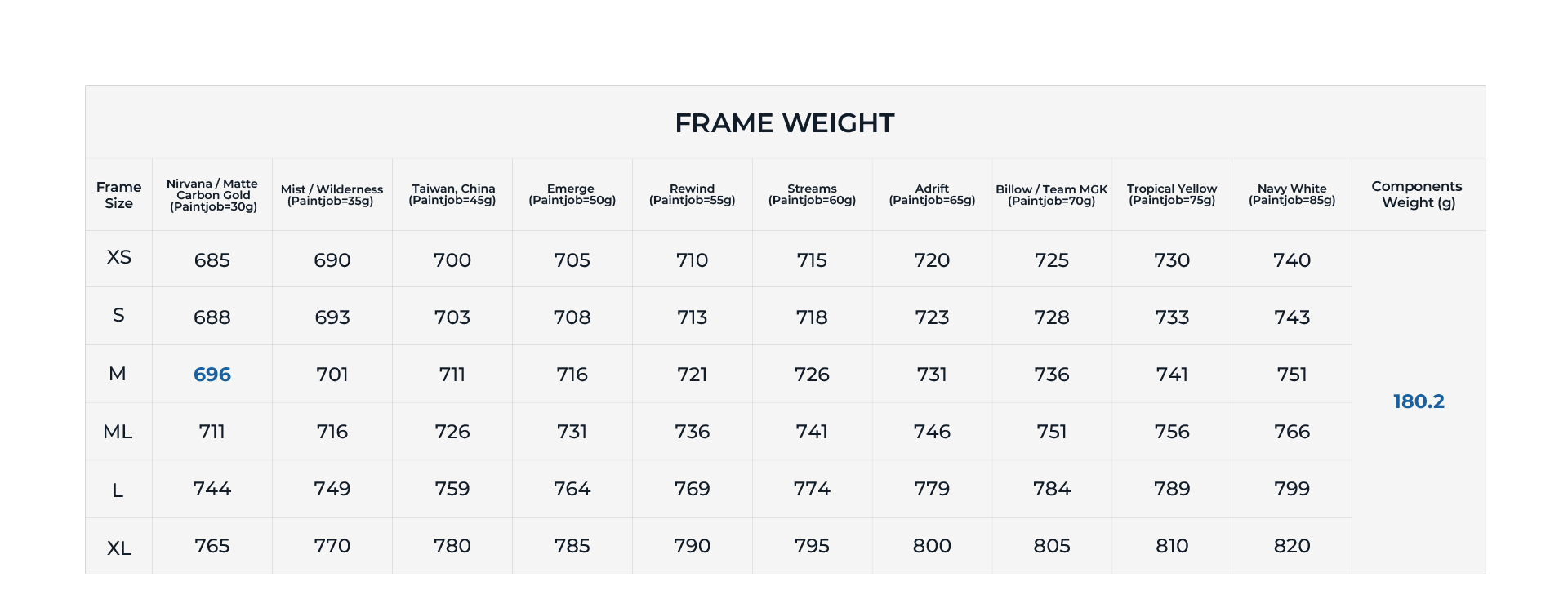

| Frame Weight | 650g (M-sized; unpainted) |

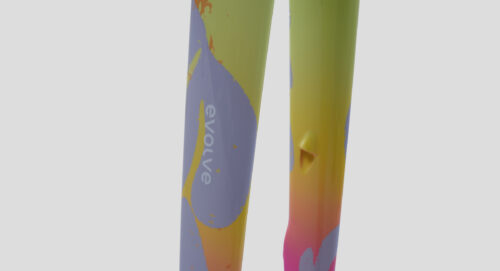

| Fork | Offset 44.0mm (XS \ S \ M); Offset 40.2mm (ML \ L \ XL) |

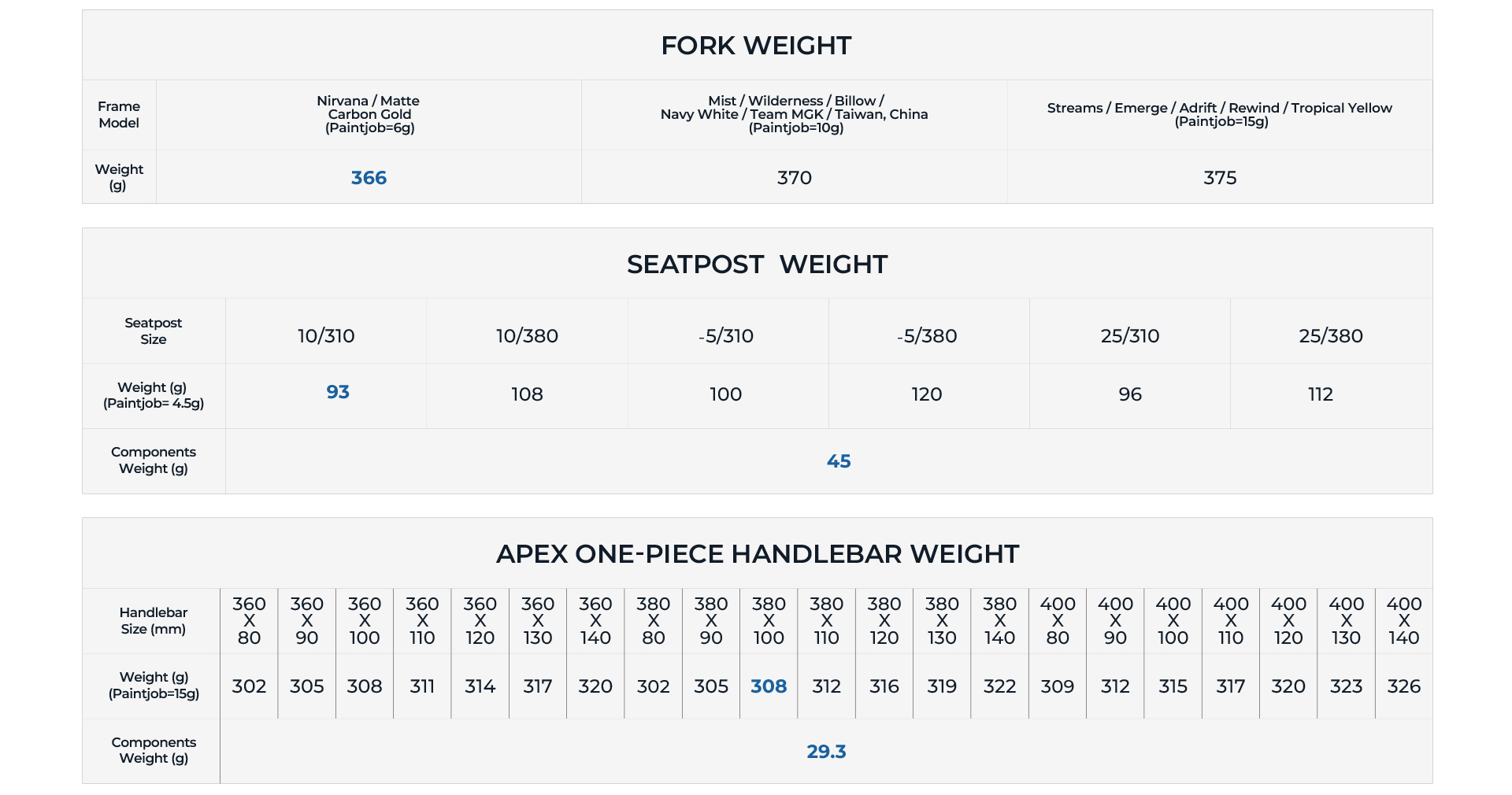

| Fork Weight | 355g (unpainted) |
| Headset | CeramicSpeed SLT Bearing |
| Headset Bearing Size | 40.5 mm ID x 49.5 mm OD x 6.5 mm |

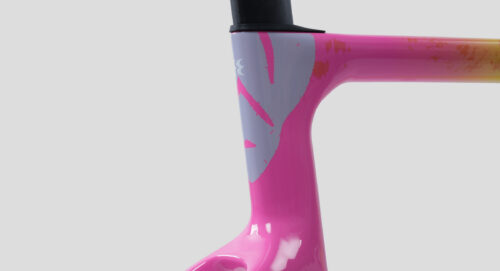

| Head Tube Diameter | 49.5mm |
| Seatpost | evolve® Seatpost |
| Seatpost Weight | 140g（Parts included） |
| Saddle Rail Clamps | 7x7, 7x9, 7x10 |
| Bottom Bracket | BSA Threaded Bottom Bracket,68mm Width |
| Cable Routing | Internal |

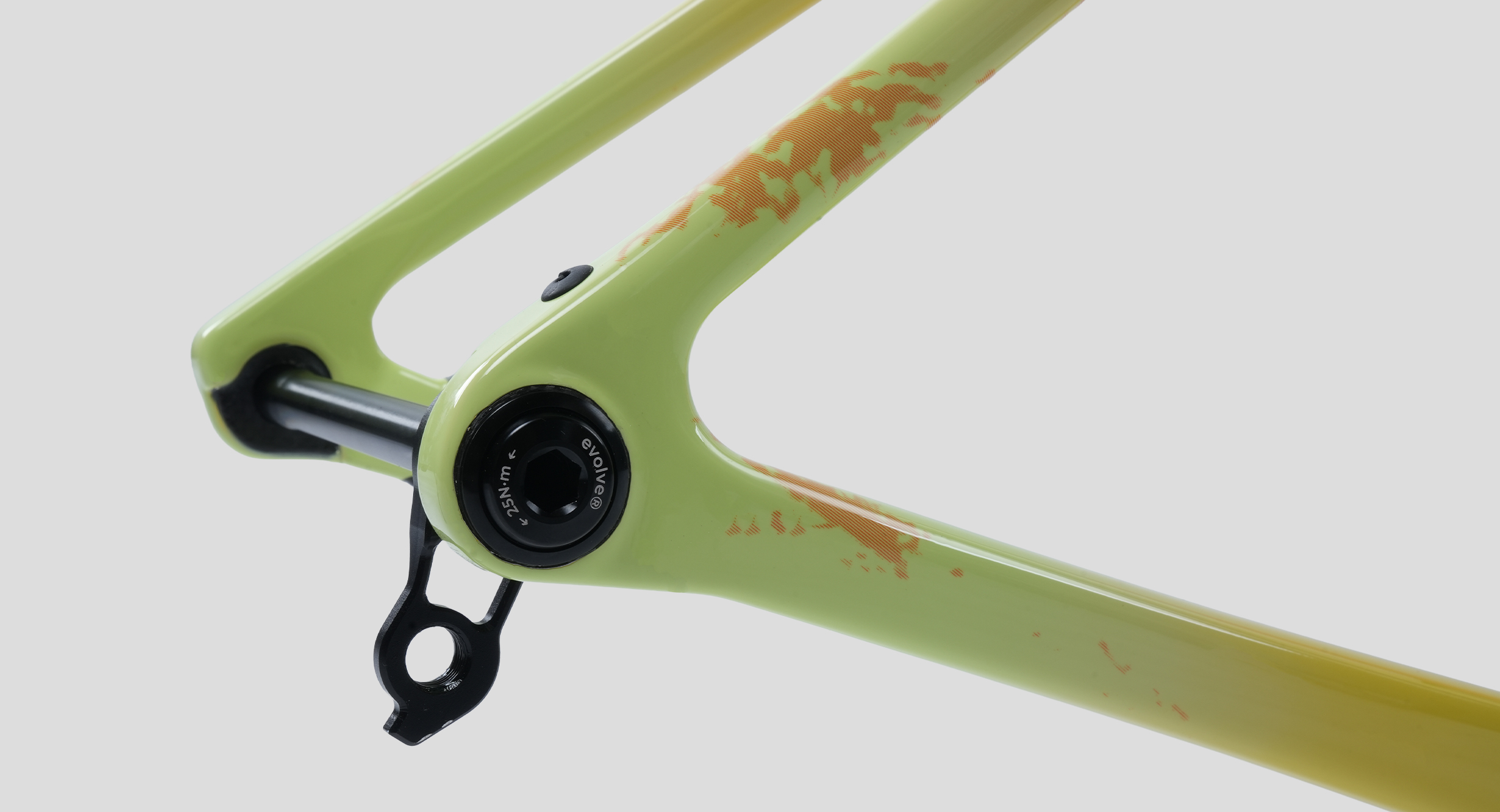

| Rear Derailleur Hanger | Sram UDH M12x1mm |
| Brake Type | Flat Mount Disc Only |
| Max Rotor Size | 160mm F&R |
| Max Chainring | 58-tooth |
| Front Axle | 12 x 100mm |
| Rear Axle | 12 x 142mm |
| Wheel Size | 700C |
| Tire Clearance | 24C-32C |
| Manufacturer Warranty | Limited Lifetime Warranty |
| Certification | UCI Approved; CE Certified |
| Limited Rider Weight | 109kg |
| Compatible Groupsets | All Shimano electronic shifting systems, all SRAM electronic shifting systems, and Campagnolo WRL systems. (Note: EPS systems are not compatible, as the battery diameter is too large to fit inside the frame.) |
