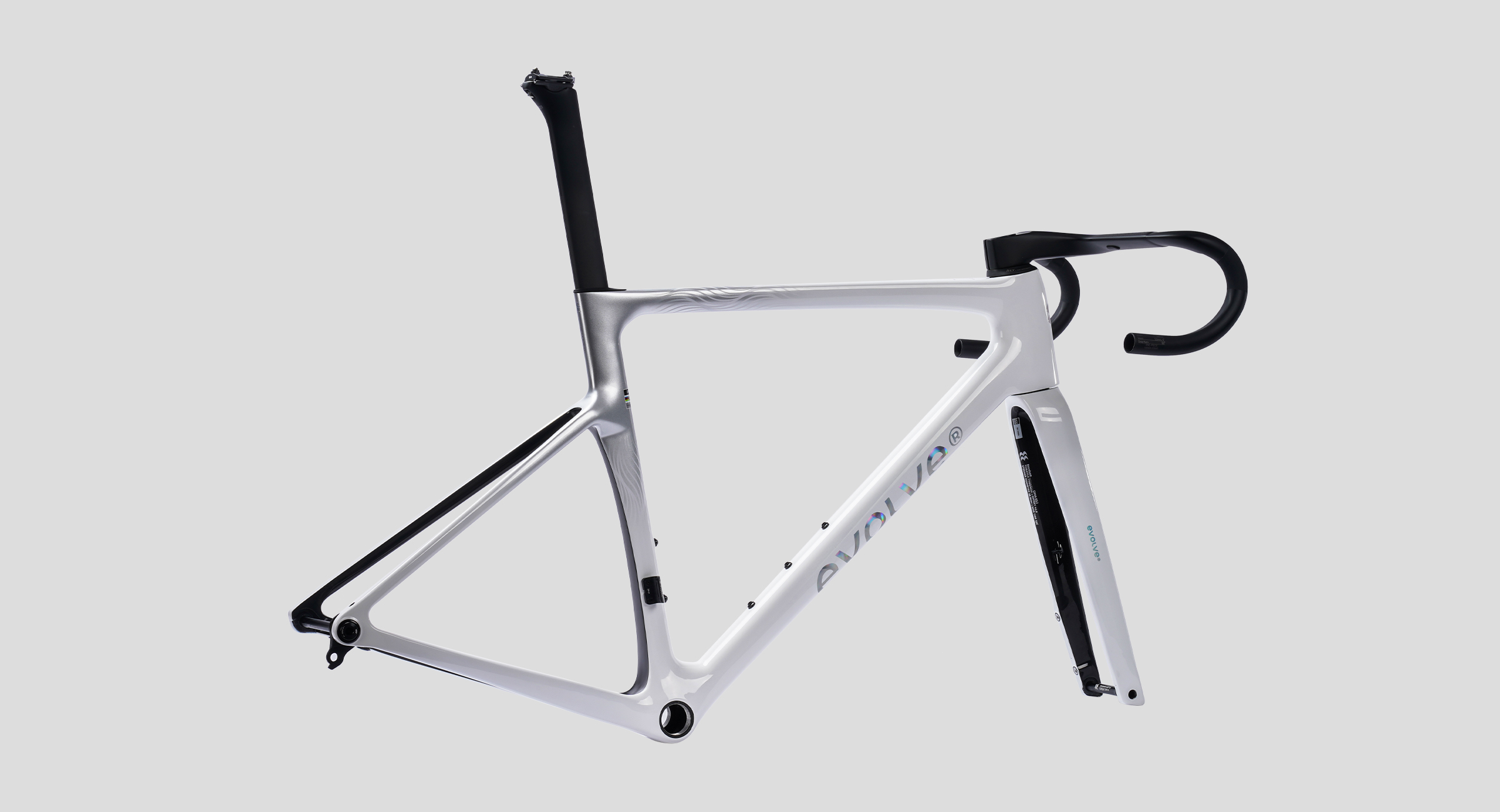

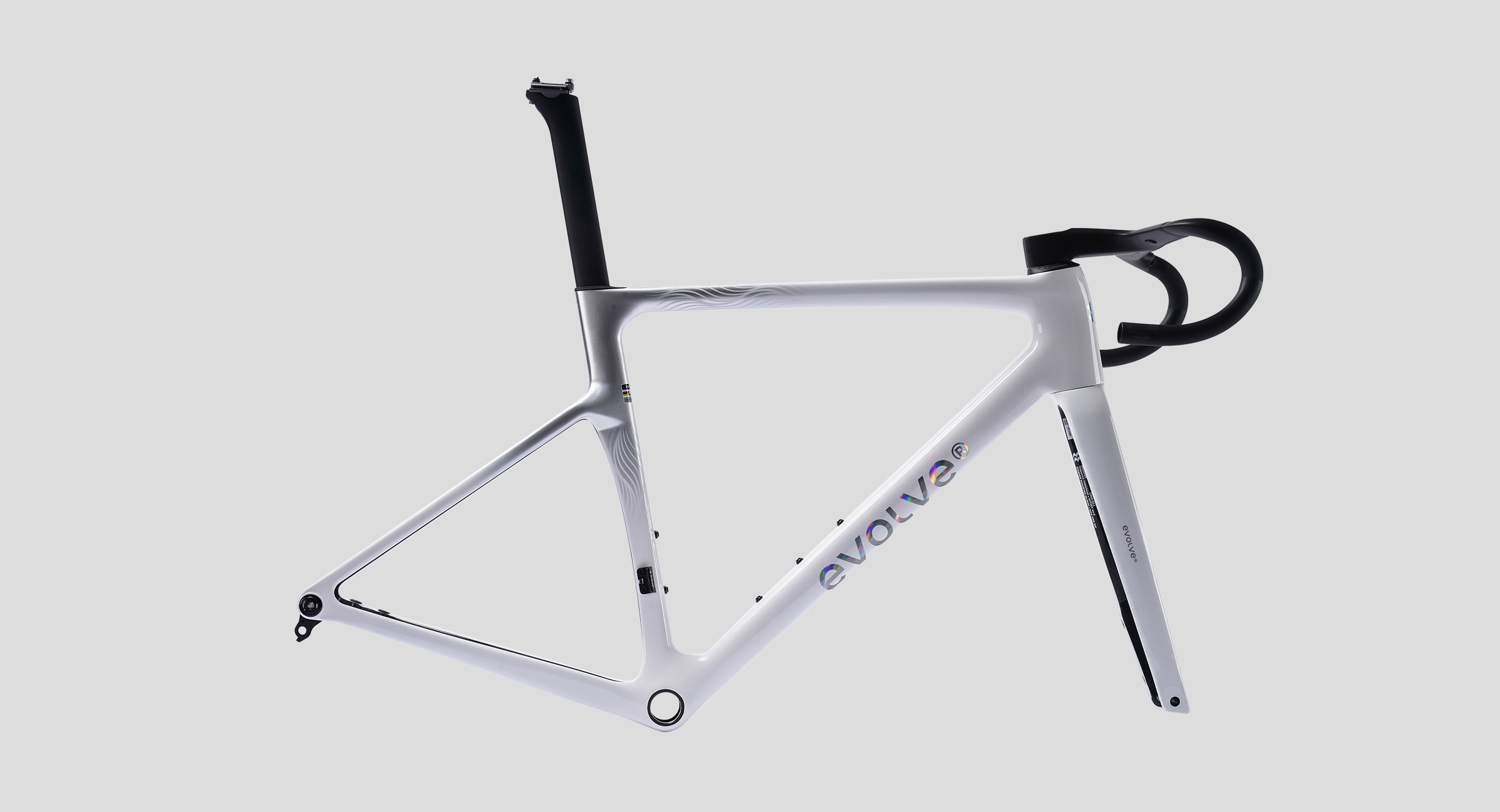

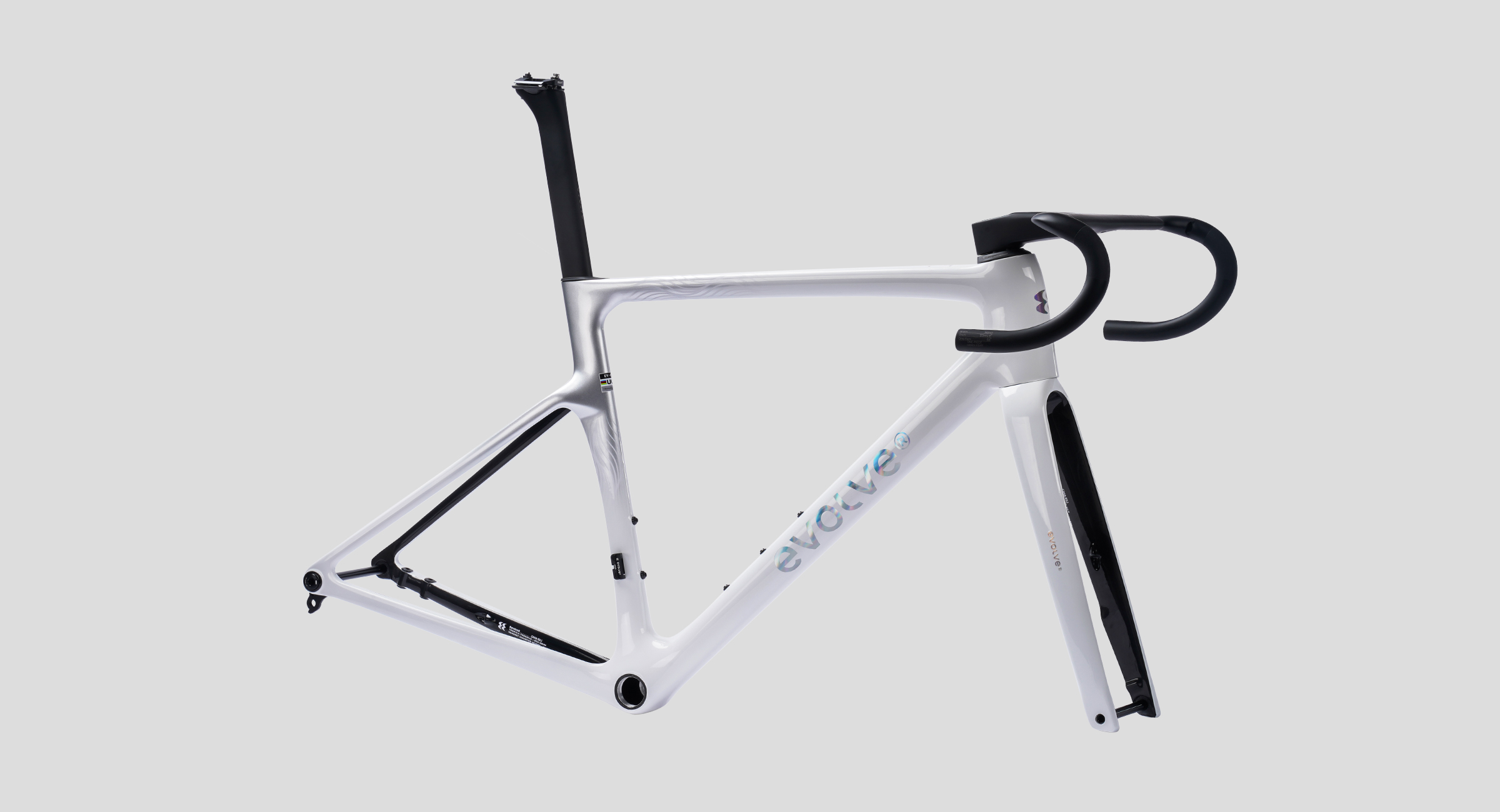

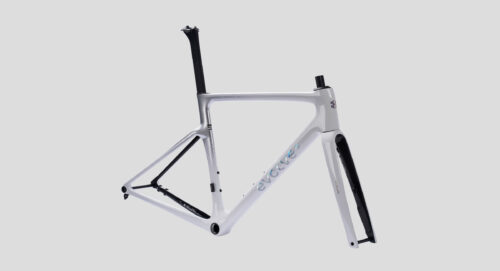

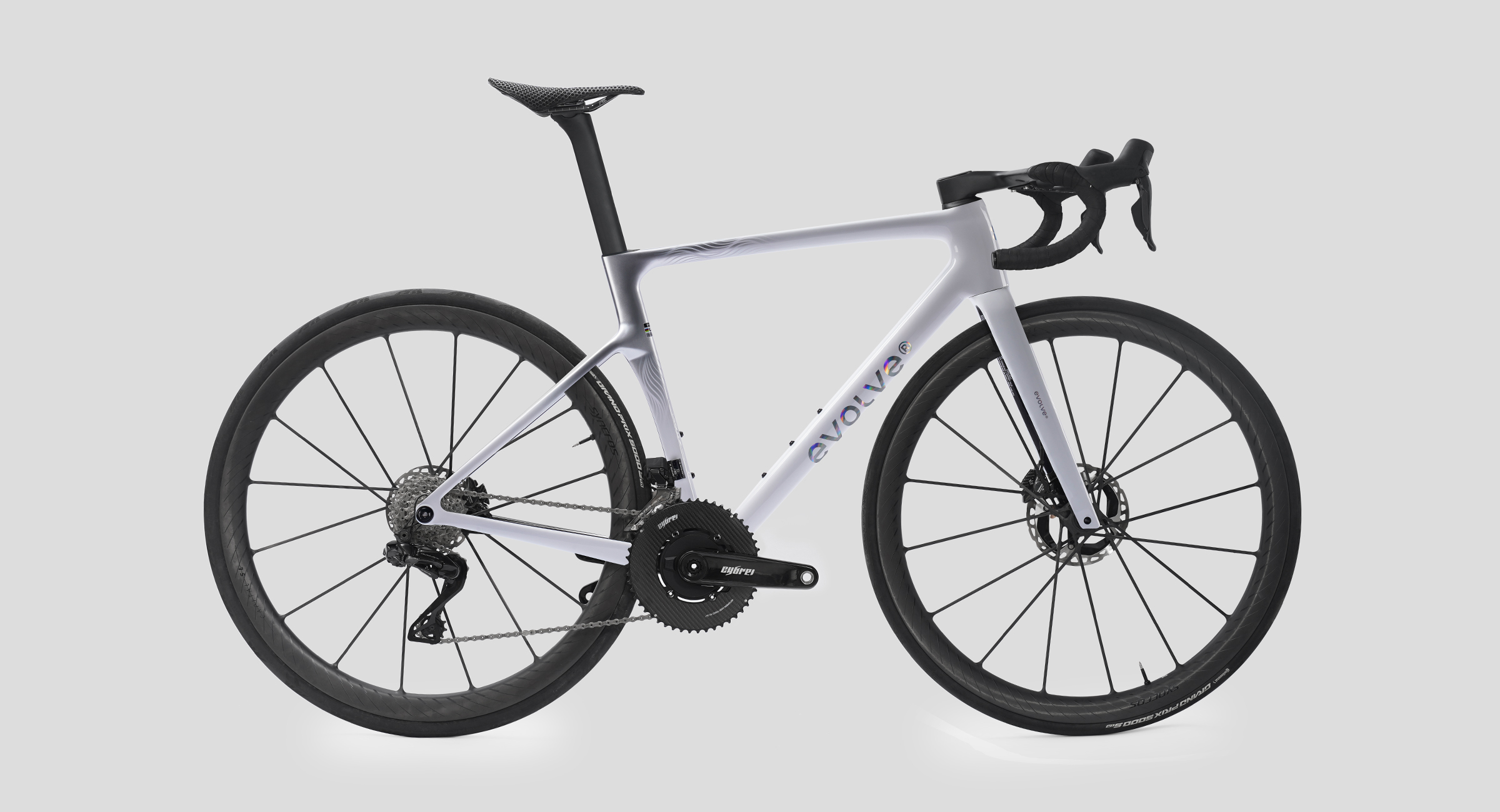

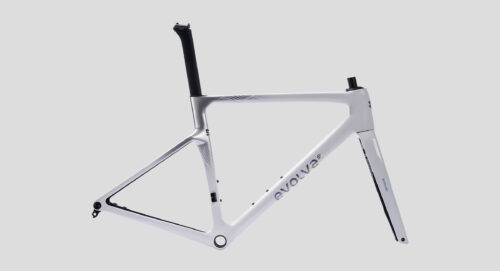

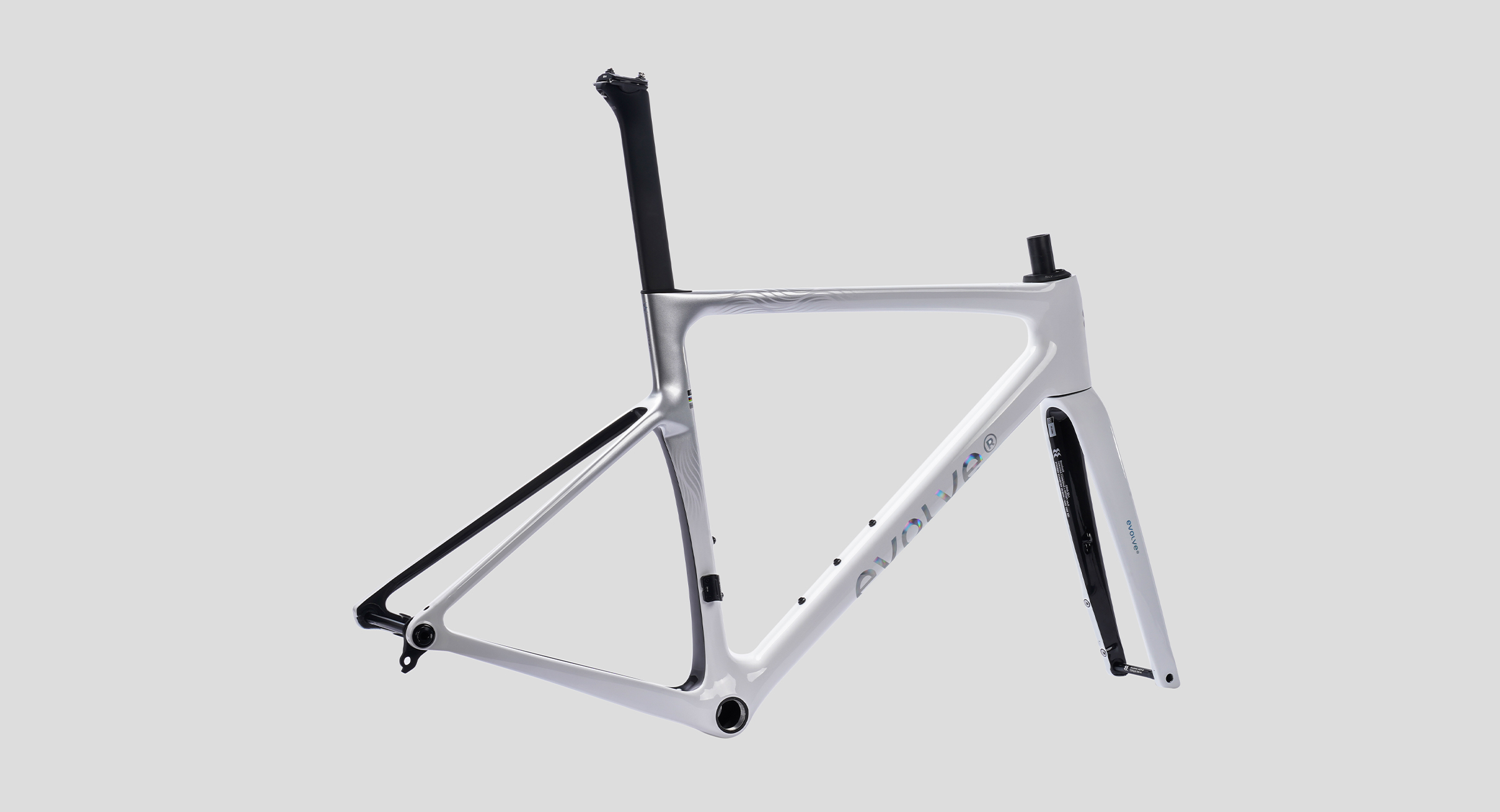

evolve CIMA Special Edition – Billow
$2,299.00
Includes the CIMA frame and fork, seatpost, and all essential components. For the ultimate riding experience, you can also choose to add the Kreuza Apex one-piece handlebar as a combo.
*Note: Please check stock availability with us via livechat or email: service@evolvebicycles.com
Description
LIGHT AS THE WIND, DEFINING IMAGINATION
650g
M-SIZED FRAME WEIGHT (UNPAINTED)
THE BEAUTY OF GEOMETRY THE SOUL OF CYCLING
6 SIZES
SUITABLE FOR RIDERS WITH HEIGHTS FROM 146CM TO 202CM
STR VALUES
1.36/1.40/1.42/1.44/1.46/1.50, SUITABLE FOR XS~XL SIZES
2 DIFFERENT OFFSET FORKS 3 DIFFERENT BB DROPS
MAINTAINING CONSISTENT HANDLING ACROSS SIZES
TOP-TIER MATERIALS EXCEPTIONAL PERFORMANCE
T1100 & T800; M40
HIGH-QUALITY TORAY CARBON FABRIC
12%↑
SPECIAL RESIN FORMULA INCREASES RIGIDITY BY 12% COMPARED TO TRADITIONAL RESINS
PREMIUM COMPONENTS SUPERIOR PERFORMANCE
CERAMICSPEED SLT HEADSET BEARINGS
BSA THREADED BOTTOM BRACKET
SRAM UDH DERAILLEUR HANGER
WORLDWIDE PROFESSIONAL RECOGNITION
IN-HOUSE TESTING
evolve® MAINTAINS STRICT STANDARDS ACROSS 21 TESTING ITEMS FOR FRAME AND FORK, ENSURING ENHANCED RELIABILITY AND RIDING SAFETY
SILVERSTONE SPORTS ENGINEERING HUB WIND TUNNEL TESTING
VALIDATING AND ENSURING GREATER AERODYNAMIC PERFORMANCE
| Frame Material | TORAYCA T1100, T800 & M40 |
| Frame Sizes | XS, S, M, ML, L, XL |
| Frame Weight | 650g (M-sized; unpainted) |
| Fork | Offset 44.0mm (XS \ S \ M); Offset 40.2mm (ML \ L \ XL) |
| Fork Weight | 355g (unpainted) |
| Headset | CeramicSpeed SLT Bearing |
| Headset Bearing Size | 40.5 mm ID x 49.5 mm OD x 6.5 mm |
| Head Tube Diameter | 49.5mm |
| Seatpost | evolve® Seatpost |
| Seatpost Weight | 140g（Parts included） |
| Saddle Rail Clamps | 7x7, 7x9, 7x10 |
| Bottom Bracket | BSA Threaded Bottom Bracket,68mm Width |
| Cable Routing | Internal |
| Rear Derailleur Hanger | Sram UDH M12x1mm |
| Brake Type | Flat Mount Disc Only |
| Max Rotor Size | 160mm F&R |
| Max Chainring | 58-tooth |
| Front Axle | 12 x 100mm |
| Rear Axle | 12 x 142mm |
| Wheel Size | 700C |
| Tire Clearance | 24C-32C |
| Manufacturer Warranty | Limited Lifetime Warranty |
| Certification | UCI Approved; CE Certified |
| Limited Rider Weight | 109kg |
| Compatible Groupsets | All Shimano electronic shifting systems, all SRAM electronic shifting systems, and Campagnolo WRL systems. (Note: EPS systems are not compatible, as the battery diameter is too large to fit inside the frame.) |
1 review for evolve CIMA Special Edition – Billow
Related products
$2,299.00
$2,299.00
$1,999.00
seyrchristian (verified owner) –
Hi, my Evolve Cima in Size ML and color Billow, is my 5th custom bike which I built by my self. Order process was easy, and got good support for checking the right size in frame handlebar and seatpost. I’m ordering wheelsets and parts directly from china for 3 years now and never had any issues. So also shipping of the frame was really smooth and only took around 2 weeks to Austria.
The frameset and all the parts where packed really secure, so no worries about scratches or any other damages.
The quality of the frame, painting, threads and all the other parts are exceptional and far better then my previous frames (Look, Orbea or Canyon). I was a big fan of the weight charts and they were absolutely accurate. No other brands provided so many details.
The building process went really smoothly, even getting the brake hoses through the handlebar was quite easy.
I also was very happy with all the additional parts for the Garmin mount, light mount, direct derailleur mount etc.
I think except of two screws of the Garmin mount all where made of titanium.
My lightweight built came out a little bit lighter then expected, for the whole bike, with pedals, etc. it is around 6,1kg whith more potential left.
I have now around 400km on the bike and it rides fabulous. It’s quite direct and stiff enough compared to my aerobike. Comfort is really good. The only thing would be to have a little bit more flare on the handlebars.
I think for this price it’s an absolute highlight and I’m really happy I have chosen the Evolve Cima.
By the way I also love this color way, whith the bare carbon insides of the fork and rearend you don’t see it on the pictures.
I didn’t find any negative on this frame, and I’m sure I will keep the bike for a long time.
Thanks to the support for the good and fast communication, there is a lot what the western brands can learn from you.
Enjoy your Evolve Cima
Sunny –
Hi seyrchristian,
Thank you for your detailed review!
We’re glad the ordering, shipping and assembly all went smoothly. The frame boasts superb craftsmanship, precise weight data and thoughtful accessories. It delivers great stiffness, responsiveness and comfort on rides. Really happy you love the unique color scheme and overall performance.
Happy riding!
